Kingbright APHHS1005 0402 SMD LEDs
Kingbright APHHS1005 0402 SMD LEDs are surface mounted, top emitting Light Emitting Diodes with an industry standard 1.0mm x 0.5mm footprint. APHHS1005 LEDs feature low power consumption, a wide 120° viewing angle, and a Moisture Sensitivity Level of MSL-3. The APHHS1005 LEDs are available in Blue, Green, Orange, Red, White, and Yellow, and are Pb-free and RoHS compliant.
Features
- Compact 0405 package; 1.0mm x 0.5mm x 0.5mm (LxWxH)
- Low power consumption
- Wide 120° viewing angle
- Available in Blue, Green, Orange, Red, White, and Yellow
- Moisture sensitivity level : MSL-3
- RoHS compliant
Applications
- Backlighting
- Status indicators
- Home and smart appliances
- Wearable and portable devices
- Healthcare applications

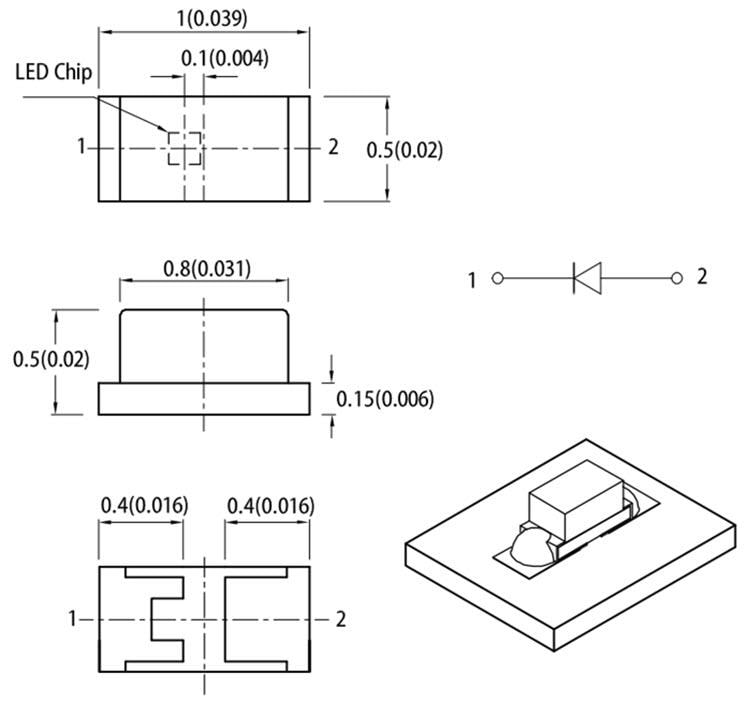

Package Dimensions
