TE Connectivity / Linx Technologies CW Monopole Antennas
TE Connectivity / Linx Technologies CW Monopole Antennas are single-band rugged connectorized antennas suitable for metal and plastic enclosures with an appropriate ground plane. These antennas target a broad range of solutions in Low-Power Wide-Area (LPWA) networks, LTE cellular, and Industrial, Scientific, and Medical (ISM) frequency band applications. TE Connectivity / Linx Technologies CW Monopole Antennas outperform multiband counterparts over desired frequencies and reject signals from unwanted frequencies. The antennas offer 50Ω impedance and operate in a temperature range of -40°C to +90°C. TE Connectivity / Linx Technologies CW antennas are easy to select using the antenna number corresponding to the target LTE band. The antennas are ideal to use in LoRaWAN™, SIGFOX®, handheld devices, Internet of Things (IoT), and LPWA networks.
Features
- Outperforms similar multiband solutions
- Durable and flexible main shaft
- Wide bandwidth
- O-ring compatible base
- Compatible with plastic and metal enclosures
- Monopole construction
- Omnidirectional radiation
- Weather resistant for IP-rated applications
Applications
- Handheld devices
- IoT devices
- LTE-M (Cat-M1) and NB-IoT cellular IoT
- LoRaWAN and SIGFOX
- LPWA networks
- FirstNet® Public Safety
- ISM/BLUETOOTH®/ZigBee®
- Sensing and remote monitoring
Specifications
- 1/4-wave (ANT-2.4-CW-QW-ccc is a 1/2-wave monopole) wavelength
- 50Ω impedance
- -40°C to +90°C operating temperature range
- 10W maximum power

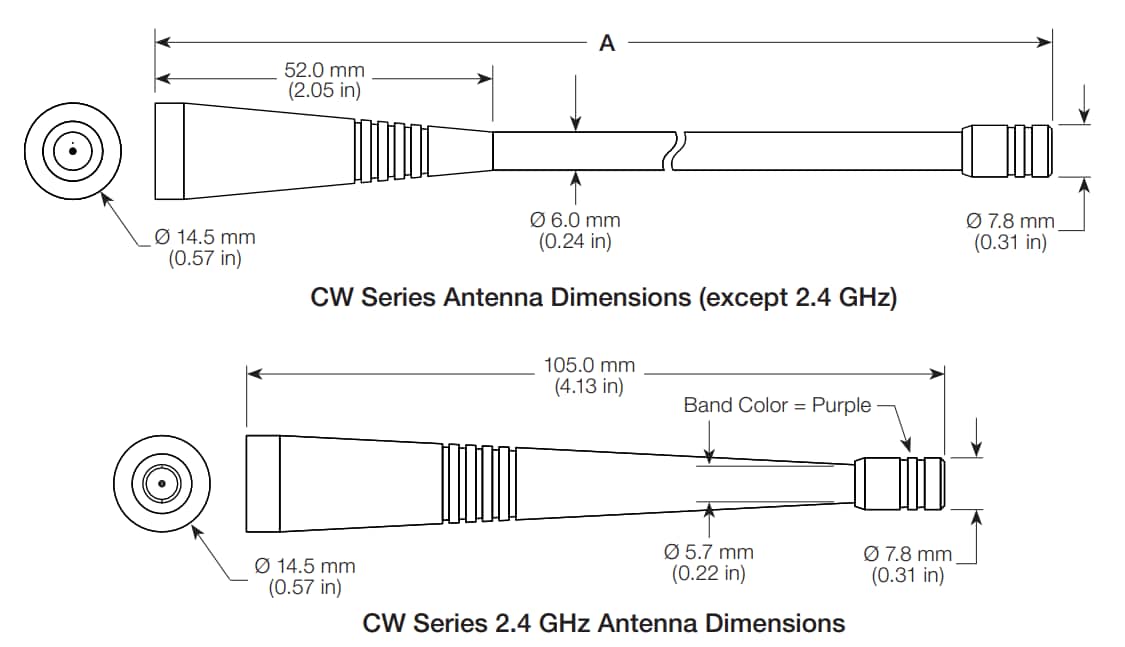

Dimensions
